Terry O’Connor

Extremity Splints:

Principles of Splinting

Rigid splints

Rigid splints can be improvised from materials such as cardboard, wood, and wire. Proprietary vacuum splints and air splints are commonly used in the field. Rigid splints are attached to the extremity with a variety of fasteners, including tape, straps, gauze, and Velcro. For all splints, ample padding is essential, especially over bony surfaces and swollen tissue to minimize pressure damage and pain.




27944208275_30f6581bc3_o

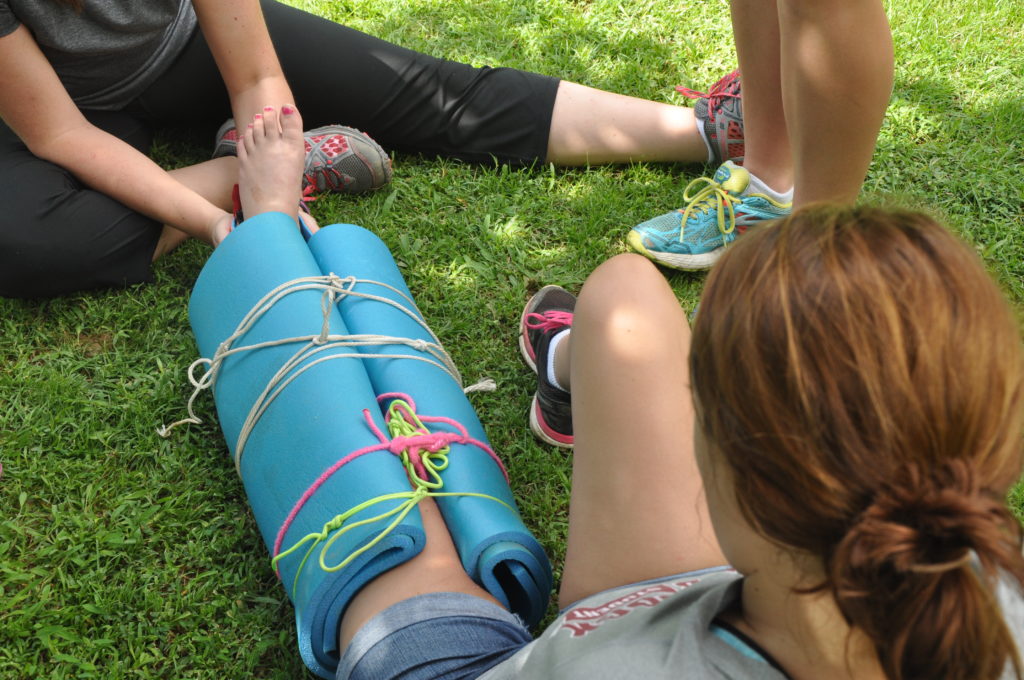

Soft improvised splint

Soft Splints

A soft splint earns its name from the soft, padded material that is used to secure the injury. Soft splints include sling and swathe splints, pillow splints, and blanket-roll splints. Shoulder, clavicle, upper arm, elbow, forearm, wrist, and even hand injuries are commonly stabilized with a sling and swathe.

Improvised Extremity Splints

Improvised splints can be made from branches, boards, padded pack straps, or rolled-up newspapers or magazines. Slings can also be made from unused clothes.  In these cases, one need not pack additional materials. Disadvantages lie in less effectiveness compared with commercial splinting devices.


Upper Extremity Splints

upper-extremity-splint-types

Shoulder Dislocation

The arm is most comfortable in an abducted position. This can be accomplished with a rolled blanket, a pillow, a jacket, or a SAM splint that has been fashioned into a triangle.

Humeral Shaft Injury

Humeral shaft fracture is often treated with a sling or with a sling and swathe splint alone. For pain control, a splint is often desirable

Elbow Dislocation

A dislocated elbow can be reduced in the field with the appropriate analgesia and experience. The dislocated elbow can also be splinted in place and the patient transported for definitive care

Elbow Fracture

A sugar-tong splint is useful for most elbow injuries. These most commonly include supracondylar, olecranon, and radial head fractures

MINOLTA DIGITAL CAMERA

Photo: sling and swathe and sugar tong splint

Wrist Fracture

The volar wrist or sugar tong splint is used for most wrist fractures, dislocations, sprains, lacerations, and other wrist injuries.

sugar-tong-splint

Figure: sugar tong splint

Metacarpal Fractures

Ulnar gutter splints are used for fourth and fifth metacarpal injuries and for corresponding digit injuries.

metacarpal-splintFigure: ulnar gutter splint

Thumb Injuries

A thumb spica splint is used for suspected scaphoid (navicular) fractures, thumb dislocations and fractures, and ulnar collateral ligament injuries.

thumb-spica-splintFigure: thumb spica


Lower Extremity Splints

lower-extremty-splintsKnee injuries

A knee immobilizer splint is used for knee injuries, patella tendon injuries, dislocations, and other severe ligamentous sprains when immobilization is required

knee-splintFigure: knee immobilizer

Leg Fractures

Long-leg splints are used for tibial and fibular fractures.

leg-splintFigure: single long leg splint

Ankle and Foot Injuries

Ankle stirrup and figure-8 splints provide for the immobilization of ankle injuries. The ankle stirrup splint can also be used for fractures

ankle-stirrup-splintFigure: ankle stirrup splint
